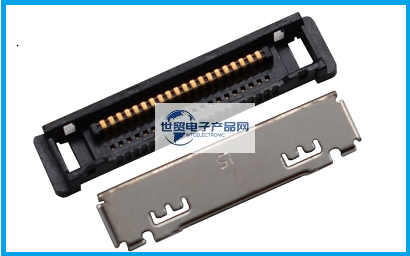

兼容/替代I-PEX|I-PEX连接器|日本第一精工|20373-R20T-06|0.4mm间距LVDS连接器产品是一款：窄型，坚固，垂直插拔，水平出线，能够承受较大电流（AWG#34） 间距0.4 mm，耐高温，耐高湿型可选的极细同轴线连接器；其主要特点是：窄小型设计适于穿孔，电源供电用途用最大可配合AWG#34线缆使用；独特W-Point双触点设计，实现高接触可靠性；耐高温/高湿度(高压灭菌)可选；接点间距(mm): 0.400；Height: 1.85 Max (1.65 Nom.) ,Pin数: 20P；极细同轴线(AWG): #38 #40 #42 #44 #46；嵌合类型: 垂直。【世贸电子产品网提供兼容I-PEX|I-PEX连接器|日本第一精工|20373-R20T-06|0.4mm间距LVDS连接器替代品】。
------------------------------------------------------------------------------------------------
1、兼容I-PEX|I-PEX连接器|日本第一精工|20373-R20T-06|0.4mm间距LVDS连接器产品相关技术参数：
| 嵌合类型 | 垂直 |
| Contact pitch | 0.40 mm |
| Height | 1.85 Max (1.65 Nom.) , |
| Depth | 3.00 mm |
| Width Formula | 5.80+(0.4*?p) mm |
| Pin count | 20 |
| Micro-Coaxial Cable (AWG) | #38 #40 #42 #44 #46 |
| Discrete Cable (AWG) | #34 #36 #38 #39 #40 #42 #44 #46 |
| Current rating | 0.24A AC/DC [AWG #42] per contact/up to 50 contacts 0.25A AC/DC [AWG #40] per contact/up to 50 contacts 0.30A AC/DC [AWG #40] per contact/up to 32 contacts 0.35A AC/DC [AWG #36] Pper contact/up to 50 contacts 0.40A AC/DC [AWG #36] per contact/up to 37 contacts 0.35A AC/DC [AWG #34] per contact/up to 50 contacts 1.00A AC/DC [AWG #34] per contact/up to 2 contacts |
| Applicable Standards (Reference Only) | USB 3.1 Gen 1 (5 Gbps) eDP HBR 3 (8.1 Gbps) eDP HBR 2 (5.4 Gbps) eDP (2.7 Gbps) HDMI 2.0 (6 Gbps) V-By-One HS 1.4 (4 Gbps) MiPi standards |
| Full shielding (ZenShield®) | No |
| Mechanical lock | No |
------------------------------------------------------------------------------------------------
