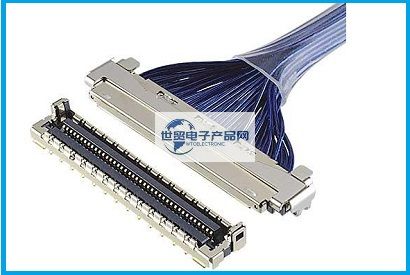

兼容/替代I-PEX|I-PEX连接器|日本第一精工|20878-040T-01|0.4mm间距LVDS连接器产品是一款:0.4 mm间距,带EMC 屏蔽和机械锁扣,90度出线垂直插拔款极细同轴线连接器;其主要特点是:ZenShield® 的全屏蔽和多点接地设计,有效防止EMI外泄;机械式锁扣罩提供高嵌合保持力;高接触可靠性;接点间距(mm): 0.400;Height: 2.35 Max (2.20 Nom.) ,Pin数:40P;极细同轴线(AWG): #38 #40 #42 #44 #46;嵌合类型: 垂直。【世贸电子产品网提供兼容I-PEX|I-PEX连接器|日本第一精工|20878-040T-01|0.4mm间距LVDS连接器替代品】。
------------------------------------------------------------------------------------------------

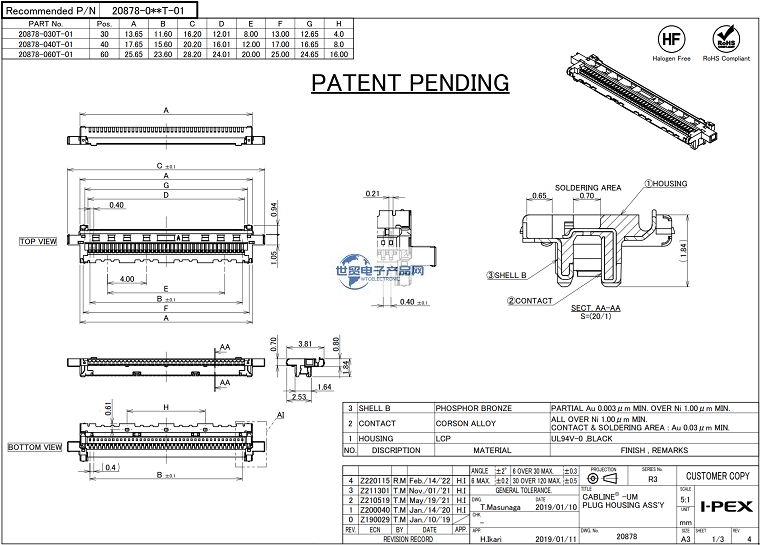

1、兼容I-PEX|I-PEX连接器|日本第一精工|20878-040T-01|0.4mm间距LVDS连接器产品相关技术参数:
嵌合类型 | 垂直 |
Contact pitch | 0.40 mm |
Height | 2.35 Max (2.20 Nom.) , |
Depth | 5.00 mm |
Width Formula | With Lock Cover : 5.0 + (0.4 * ?p); Without Lock Cover : 4.2 + (0.4 * ?p) mm |
Pin count | 40 |
Micro-Coaxial Cable (AWG) | #38 #40 #42 #44 #46 |
Discrete Cable (AWG) | #34 #36 #38 #39 #40 #42 #44 #46 |
Current rating | 0.1A AC/DC [AWG #44] Per Contact 0.24A AC/DC [AWG #42] Per Contact 0.3A AC/DC [AWG #40] Per Contact 0.5A AC/DC [AWG #38] Per Contact 0.8A AC/DC [AWG #36] Per Contact 1.0A AC/DC [AWG #34] Per Contact |
Applicable Standards (Reference Only) | USB4 (20 Gbps/lane) USB 3.1 Gen 2 (10 Gbps) USB 3.1 Gen 1 (5 Gbps) eDP HBR 3 (8.1 Gbps) eDP HBR 2 (5.4 Gbps) eDP (2.7 Gbps) HDMI 2.0 (6 Gbps) V-By-One HS 1.4 (4 Gbps) MiPi standards |
Full shielding (ZenShield®) | Yes |
Mechanical lock | Yes |
------------------------------------------------------------------------------------------------
