分类:连接器产品

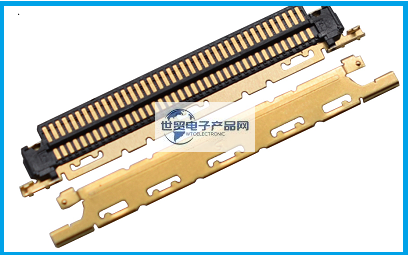

兼容/替代I-PEX|I-PEX连接器|日本第一精工|20473-040T-10|0.4mm间距LVDS连接器产品是一款:0.4 mm 间距, 水平插拔,带机械锁扣的极细同轴线连接器(连接器高度: 0.825 mm.);其主要特点是:低背型连接器: 嵌合高度0.975mm max. (0.825 mm nominal);可选机械锁扣,可以防止连接器不完全插入或者连接器的脱落;多点接地设计具有良好的抗EMI 性能;接点间距(mm): 0.400;Height: 0.98 Max (0.83 Nom.) ,Pin数:40P;极细同轴线(AWG): #40 #42 #44 #46;嵌合类型: 水平。【世贸电子产品网提供兼容I-PEX|I-PEX连接器|日本第一精工|20473-040T-10|0.4mm间距LVDS连接器替代品】。0
------------------------------------------------------------------------------------------------
1、兼容/替代I-PEX|I-PEX连接器|日本第一精工|20473-040T-10|0.4mm间距LVDS连接器产品相关技术参数:
嵌合类型 | 水平 |
Contact pitch | 0.40 mm |
Height | 0.98 Max (0.83 Nom.) , |
Depth | 5.45 mm |
Width Formula | 6.44+(0.4*?p) mm |
Pin count | 30 40 |
Micro-Coaxial Cable (AWG) | #40 #42 #44 #46 |
Discrete Cable (AWG) | #36 #38 #39 #40 #42 #44 #46 |
Current rating | 0.1A AC/DC [AWG #44] per contact 0.24A AC/DC [AWG #42] per contact 0.3A AC/DC [AWG #40] per contact 0.8A AC/DC {AWG #36] per contact |
Applicable Standards (Reference Only) | USB 3.1 Gen 1 (5 Gbps) V-By-One HS 1.4 (4 Gbps) eDP (2.7 Gbps) MiPi standards |
Full shielding (ZenShield®) | No |
Mechanical lock | Yes |
------------------------------------------------------------------------------------------------
2、兼容
