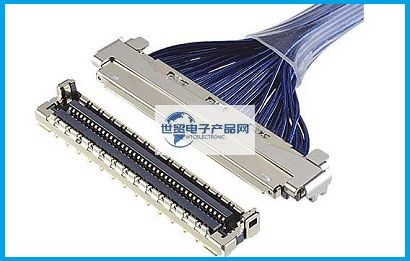

兼容/替代I-PEX|I-PEX连接器|日本第一精工|20879-040E-01|0.4mm间距LVDS连接器母座产品是一款：全屏蔽设计和多点接地设计，机械锁扣，高速数据传输(20 Gbps/lane), 0.4 mm间距, 90度出线垂直插拔款的极细同轴线连接器；其主要特点是：ZenShield® 的全屏蔽和多点接地设计，有效防止EMI外泄；选配多样化；高接触可靠性。【世贸电子产品网提供兼容I-PEX|I-PEX连接器|日本第一精工|20879-040E-01|0.4mm间距LVDS连接器母座替代品】。
------------------------------------------------------------------------------------------------

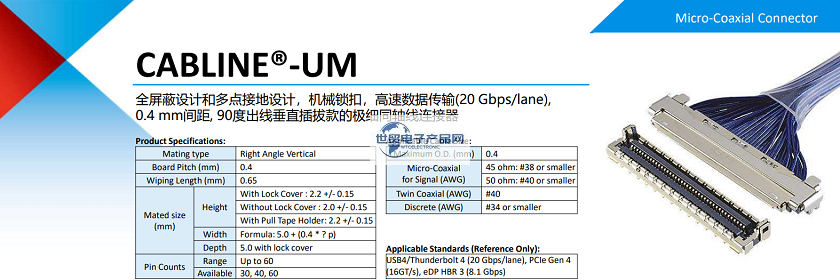

1、兼容/替代I-PEX|I-PEX连接器|日本第一精工|20879-040E-01|0.4mm间距LVDS连接器母座产品相关技术参数：
| 嵌合类型 | 垂直 |
| Contact pitch | 0.40 mm |
| Height | 2.35 Max (2.20 Nom.) , |
| Depth | 5.00 mm |
| Width Formula | With Lock Cover : 5.0 + (0.4 * ?p); Without Lock Cover : 4.2 + (0.4 * ?p) mm |
| Pin count | 30 40 60 |
| Micro-Coaxial Cable (AWG) | #38 #40 #42 #44 #46 |
| Discrete Cable (AWG) | #34 #36 #38 #39 #40 #42 #44 #46 |
| Current rating | 0.1A AC/DC [AWG #44] Per Contact 0.24A AC/DC [AWG #42] Per Contact 0.3A AC/DC [AWG #40] Per Contact 0.5A AC/DC [AWG #38] Per Contact 0.8A AC/DC [AWG #36] Per Contact 1.0A AC/DC [AWG #34] Per Contact |
| Applicable Standards (Reference Only) | USB4 (20 Gbps/lane) USB 3.1 Gen 2 (10 Gbps) USB 3.1 Gen 1 (5 Gbps) eDP HBR 3 (8.1 Gbps) eDP HBR 2 (5.4 Gbps) eDP (2.7 Gbps) HDMI 2.0 (6 Gbps) V-By-One HS 1.4 (4 Gbps) MiPi standards |
| Full shielding (ZenShield®) | Yes |
| Mechanical lock | Yes |
------------------------------------------------------------------------------------------------
